ULTRASONIC WELDING

ULTRASONIC WELDING


Ultrasonic welding is an industrial technique whereby high-frequency ultrasonic acoustic vibrations are locally applied to work pieces being held together under pressure to create a solid-state weld.

It is commonly used for plastics, and especially for joining dissimilar materials. In ultrasonic welding, there are no connective bolts, nails, soldering materials, or adhesives necessary to bind the materials together.

Ultrasonic welding of thermoplastics causes local melting of the plastic due to absorption of vibration energy. The vibrations are introduced across the joint to be welded. In metals, Ultrasonic welding occurs due to high- pressure dispersion of surface oxides and local motion of the materials. Although there is heating, it is not enough to melt the base materials. Vibrations are introduced along the joint being welded.


The ultrasonic effect upon the molten metal generates a smaller grain size, giving the metal more strength.

Ultrasonic welding combines pressure and high frequency vibration motions to form a solid state bond.

The range ultrasonic frequency used in this welding is from 20kHz to 60kHz. This cool, strong weld capable of joining such combination as aluminium to steel, aluminium to tungsten, aluminium to molybdenum and nickel to brass.

Ultrasonic welding has also made it possible to join metals with vastly different melting temperatures, making strong rigid joints. Thus many applications previously considered unweldable can now revaluated

Objectives:

Increasing the strength, reliability and durability of welded structures is an important problem in welding engineering. A significant influence is exerted by residual stresses. Uneven heating of the product during welding causes its uneven temperature deformation. The product material solidity prevents the free temperature deformation of its individual parts, resulting in the formation of stresses and plastic deformation of some parts of the joint metal during welding, and after cooling, welding stresses and deformations remain in the product So, Ultrasonic metal welding plays important role.

Comments

Post a Comment

Popular posts from this blog

Laser Cutting Machine

Laser cutting     is a fabrication process which employs a focused, high-powered   laser beam   to cut material into custom shapes and designs. This process is suitable for a wide range of materials, including metal, plastic, wood, gemstone, glass, and paper, and can produce precise, intricate, and complex parts without the need for custom-designed tooling. There are several different types of laser cutting available, including fusion cutting, oxidation cutting, and scribing. Each laser cutting process can produce parts with precision, accuracy, and high-quality edge finishes, and with generally less material contamination, physical damage, and waste than with other conventional cutting processes, such as mechanical cutting and waterjet cutting. However, while laser cutting demonstrates certain advantages over more conventional cutting processes, some manufacturing applications can be problematic, such as cutting reflective material or material requiring secondary ma...
Read more

Biomechanical engineering

 Biomechanical engineering is a field that integrates principles of mechanical engineering with biological systems, particularly focusing on the interaction between mechanical factors and living organisms. Here are some key aspects and applications of biomechanical engineering: Biomechanics : This involves the study of the mechanical aspects of biological systems, such as how forces affect cells, tissues, and organs. Biomechanical engineers apply principles from mechanics (statics, dynamics, fluid mechanics, etc.) to understand and analyze biological structures and functions. Medical Devices : Biomechanical engineers design and develop medical devices such as prosthetics, implants, orthotics, and assistive devices. These devices aim to improve mobility, enhance bodily functions, or replace damaged biological structures. Tissue Engineering : This field combines engineering principles with biology to create biological substitutes that restore, maintain, or improve tissue function. Bi...
Read more

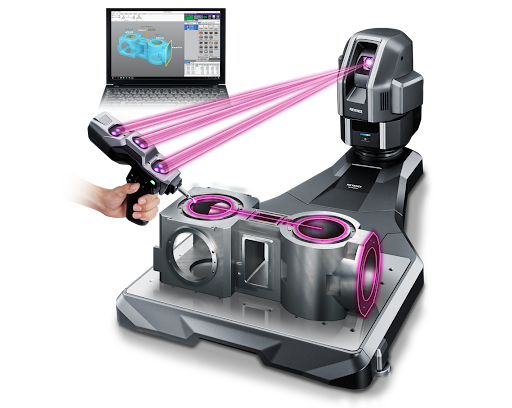

Coordinate Measuring Machine Probes
